Catnic CG90/100 Cavity Steel Lintel 1950mm
Catnic CG90/100 Cavity Steel Lintel 1950mm

Catnic CG90/100 Cavity Steel Lintel 1950mm

  • Cavity Lintel
  • Insulation King

  • Free Next Day Delivery (over £500) in the West Midlands
  • Free Standard Delivery (over £500)
  • View our guides for Help & Advice
 (   Ex. VAT) £120.56 £0.00 /
Subscription
All prices are including VAT

🚛 Next Day Delivery (West Midlands) – FREE on orders over £500

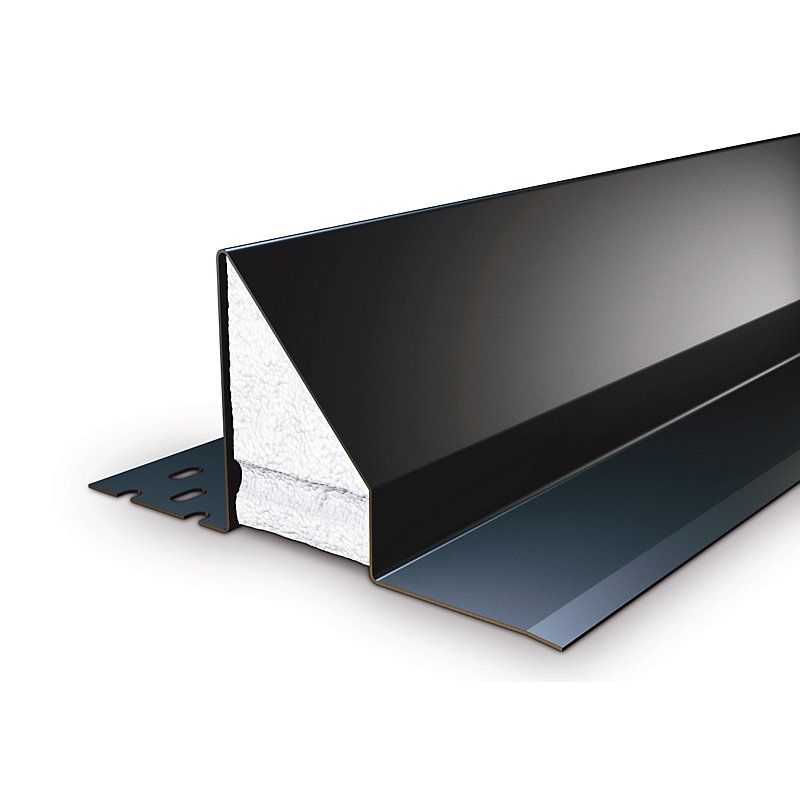

The Catnic Cougar Open Back Cavity Wall Standard Duty Lintel 1950mm CG90/100 is a high-strength structural lintel designed for cavity wall construction in residential and commercial buildings. Manufactured from galvanised steel and finished with a durable black powder coating, it delivers excellent load-bearing performance, long-lasting corrosion resistance, and reliable structural support. The innovative Cougar open back profile allows masonry to be built continuously on both the inner and outer leaf, ensuring efficient installation and a professional finish.

Featuring integral insulation, a built-in damp-proof course (DPC), and an integral plaster key, this lintel helps improve thermal efficiency while simplifying construction. Suitable for supporting uniformly distributed masonry loads, timber floor loads, and roof loads, it is also ideal for fair-faced inner leaf masonry applications.

Key Features

  • Designed for cavity wall construction
  • Suitable for cavity widths of 90mm - 105mm
  • Supports uniformly distributed masonry, timber floor, and roof loads
  • Integral insulation for enhanced thermal performance
  • Built-in DPC for effective moisture protection
  • Integral plaster key for easy plaster application
  • Manufactured from galvanised steel with black powder-coated finish
  • Duplex corrosion protection for long-term durability

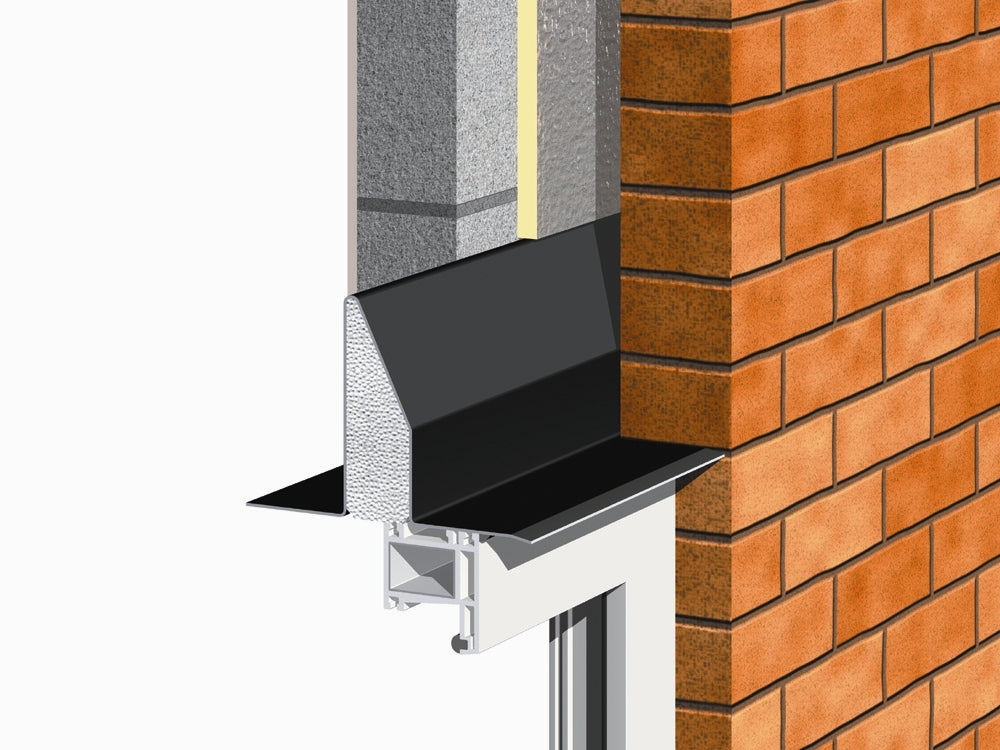

  • Open back Cougar profile for continuous masonry construction
  • Suitable for fair-faced inner leaf masonry
  • Continuous insulation helps reduce thermal bridging
  • Safe Working Load (SWL): 20kN

Dimensions & Pack Size

  • Length: 1950mm
  • Height: 160mm
  • Width: 283mm
  • Cavity Size: 90mm - 105mm
  • Outer Leaf: 95mm - 105mm
  • Inner Leaf: 100mm - 115mm
  • Material: Galvanised Steel (Powder Coated)
  • Safe Working Load: 20kN
  • Colour: Black
  • Weight: 17.07kg
  • Type: Open Back Cougar Lintel
  • Manufacturer Model: CG90/1001950
  • Brand: Catnic
  • Country of Origin: UK
  • Pack Quantity: 1 Lintel
