Description

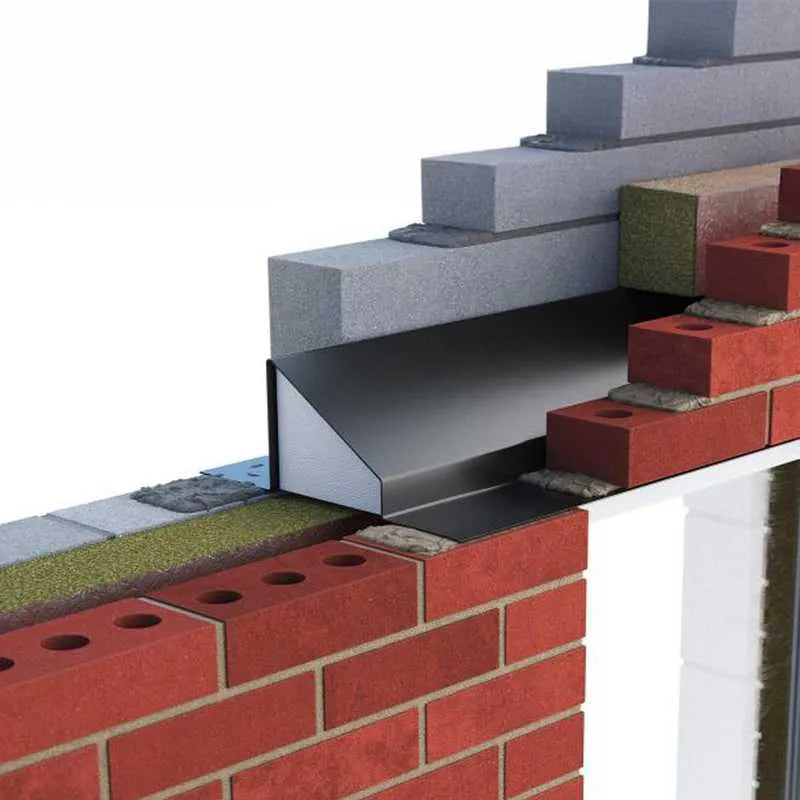

The Catnic CG150/100 Standard Duty Cavity Wall Lintel 3000mm is a high-strength structural steel support designed for cavity wall construction with cavity widths between 150mm and 165mm. Engineered to provide reliable support over large openings, this lintel is ideal for carrying typical masonry, timber floor, and roof loads in residential and light commercial buildings.
Manufactured from galvanised steel and protected by Catnic’s renowned Duplex corrosion protection system, the lintel offers exceptional durability and long-term resistance to corrosion. Its open-back profile allows continuous masonry construction across both inner and outer leaves, while integral insulation, a built-in damp-proof course (DPC), and an integrated plaster key help improve thermal performance and simplify installation. Designed for dependable structural support and energy-efficient building performance, it is a practical solution for modern cavity wall systems.
Important: A minimum end bearing of 150mm is required on both sides of the opening. Therefore, a 3000mm lintel is suitable for a maximum structural opening of 2700mm.
Key Features
Suitable for 150mm - 165mm cavity wall construction Maximum structural opening of 2700mm Designed for standard masonry, timber floor, and roof loads Open-back profile allows continuous masonry construction Built-in DPC for effective moisture management Integral insulation reduces thermal bridging Built-in plaster key for direct plaster application Manufactured from galvanised steel Duplex corrosion protection for long service life Suitable for residential and light commercial applications Easy-to-install and cost-effective design
Dimensions & Pack Size
Length: 3000mm Maximum Clear Opening: 2700mm Cavity Size: 150mm - 165mm Outer Leaf: 100mm - 105mm Inner Leaf: 100mm - 115mm Material: Galvanised Steel (Powder Coated) Colour: Black Type: Standard Duty Cavity Wall Lintel Model: CG150/100 Brand: Catnic Country of Origin: UK Pack Quantity: 1 Lintel
