Description

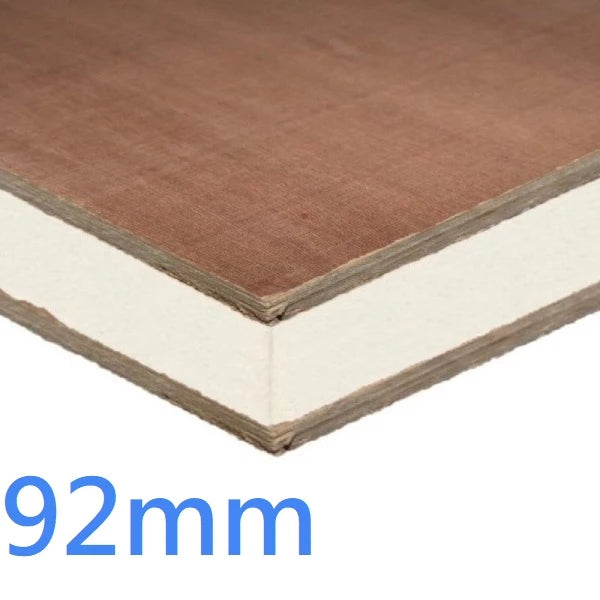

The 92mm Structural Insulated Panel (SIP) with PIR and Plywood is a high-performance construction board designed to provide outstanding thermal insulation, structural strength, and long-term durability. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel delivers an efficient and dependable solution for modern energy-efficient construction.
Featuring an impressive R-value of 3.64m²K/W and a low thermal conductivity of 0.022 W/mK , the panel provides excellent insulation performance, helping to reduce heat loss and improve overall building energy efficiency. The foil-faced PIR core creates an integrated vapour control layer , helping minimise moisture transfer and protect the building structure.
The square-edge profile allows easy installation using the butt joint technique, while the strong yet lightweight design provides excellent handling and fitting advantages on site. Suitable for roofs, walls, floors, and general construction applications , this 92mm SIP panel offers a reliable combination of insulation and structural performance, manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Excellent thermal performance with R-value of 3.64m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier transportation and installation
Suitable for roofs, walls, floors, and general construction applications
Square-edge profile for accurate butt joint fitting
Durable high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 92mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 29.92kg per panel
Pack Size: Single panel (2400mm x 1200mm x 92mm)
Profile: Square Edge
