Description

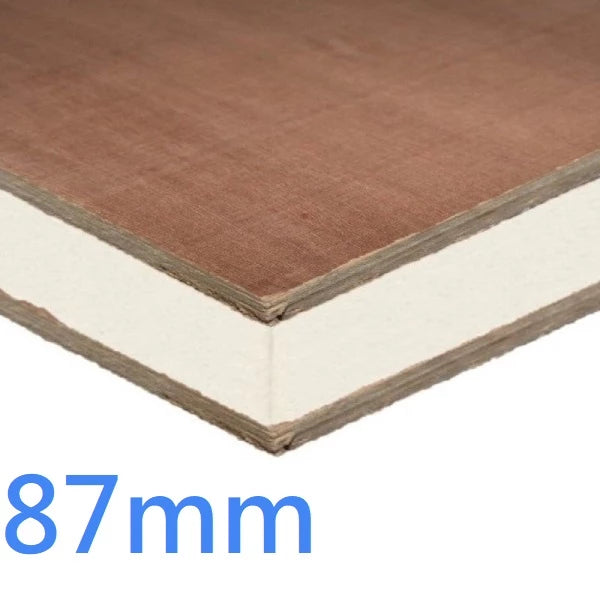

The 87mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board designed to deliver exceptional thermal insulation, structural stability, and long-lasting durability. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel provides an efficient and reliable solution for modern energy-efficient construction projects.
With an excellent R-value of 3.41m²K/W and a low thermal conductivity of 0.022 W/mK , the panel offers superior insulation performance, helping reduce heat loss and improve building energy efficiency. The foil-faced PIR core acts as an integrated vapour control layer , helping minimise moisture transmission and enhance the lifespan of the structure.
Designed with a square-edge profile , the panel allows easy and accurate installation using the butt joint technique. Its strong yet lightweight construction makes it suitable for roofs, walls, floors, and general construction applications , providing builders and contractors with a dependable high-performance insulated board manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Superior thermal insulation with R-value of 3.41m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier handling and installation
Suitable for roofs, walls, floors, and general construction projects
Square-edge profile for precise butt joint fitting
Durable and reliable construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 87mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 29.4kg per panel
Pack Size: Single panel (2400mm x 1200mm x 87mm)
Profile: Square Edge
