Description

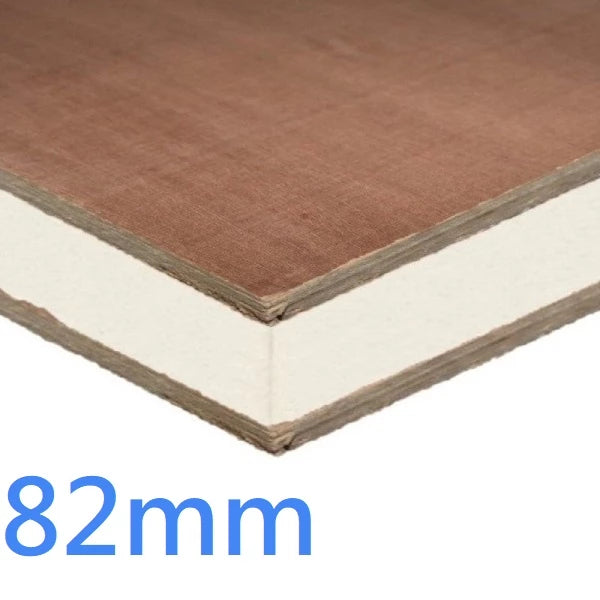

The 82mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board engineered to provide superior thermal insulation, structural strength, and long-term durability. Manufactured with a rigid polyisocyanurate (PIR) insulation core bonded with 6mm WBP plywood facings , this panel offers an efficient and reliable solution for energy-efficient building projects.
Featuring an excellent R-value of 3.18m²K/W and a low thermal conductivity of 0.022 W/mK , the panel delivers outstanding insulation performance by helping reduce heat loss and improve overall building energy efficiency. The foil-faced PIR core provides an integrated vapour control layer , helping minimise moisture transfer and protect the structure over time.
The square-edge profile allows for simple and accurate installation using the butt joint technique, while the strong yet lightweight design ensures easier handling and fitting on site. Suitable for roofs, walls, floors, and general construction applications , this 82mm SIP panel provides a dependable combination of insulation, strength, and durability, manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Excellent thermal insulation with R-value of 3.18m²K/W
Low thermal conductivity of 0.022 W/mK for enhanced energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier handling and installation
Suitable for roofs, walls, floors, and general construction projects
Square-edge profile for precise butt joint installation
Durable high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 82mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 28.08kg per panel
Pack Size: Single panel (2400mm x 1200mm x 82mm)
Profile: Square Edge
