Description

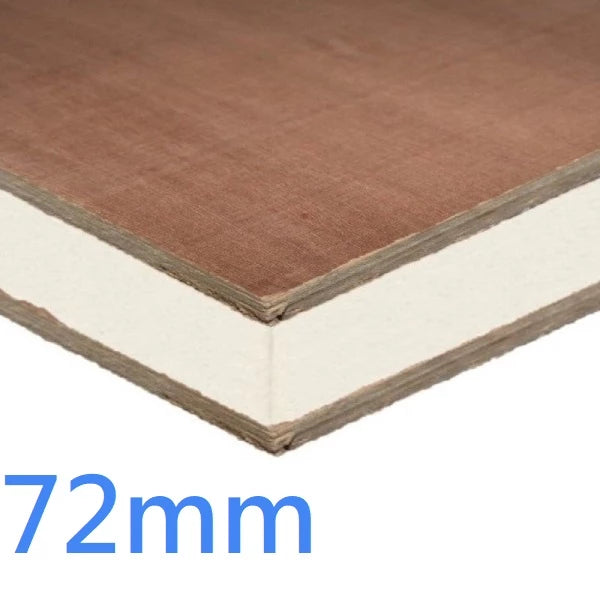

The 72mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board designed to provide exceptional thermal insulation, structural stability, and long-term durability. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel delivers an efficient and reliable solution for modern energy-efficient building projects.
With an excellent R-value of 2.73m²K/W and a low thermal conductivity of 0.022 W/mK , the panel provides outstanding insulation performance, helping to reduce heat loss and improve overall building energy efficiency. The foil-faced PIR core offers an integrated vapour control layer , helping minimise moisture movement and maintain the integrity of the structure.
The square-edge profile ensures easy and accurate installation using the butt joint technique, while the strong yet lightweight design allows convenient handling on site. Suitable for roofs, walls, floors, and general construction applications , this 72mm SIP panel provides a dependable combination of insulation, strength, and durability, manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Features a rigid PIR insulation core with 6mm WBP plywood facings
Superior thermal insulation with R-value of 2.73m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier transportation and installation
Suitable for roofs, walls, floors, and general construction projects
Square-edge profile for precise butt joint fitting
Durable high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 72mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 25.23kg per panel
Pack Size: Single panel (2400mm x 1200mm x 72mm)
Profile: Square Edge
