Description

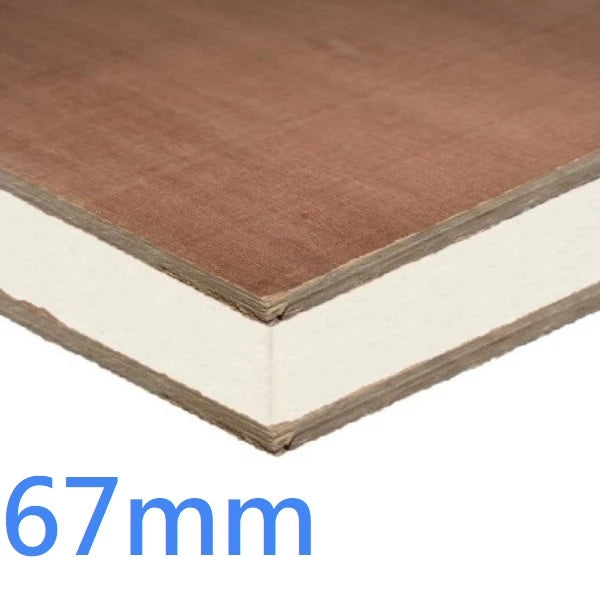

The 67mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance insulated construction board designed to deliver outstanding thermal efficiency, structural strength, and durability for modern building applications. Featuring a rigid polyisocyanurate (PIR) insulation core bonded with 6mm WBP plywood facings , this panel provides a strong and reliable solution for energy-efficient construction.
With an excellent R-value of 2.49m²K/W and a low thermal conductivity of 0.022 W/mK , the panel offers superior insulation performance, helping to reduce heat loss and improve building energy efficiency. The foil-faced PIR core acts as an integrated vapour control layer , helping minimise moisture transmission and protect the structure over time.
Designed with a square-edge profile , the panel allows simple and accurate installation using the butt joint technique. Its robust yet lightweight construction makes it suitable for roofs, walls, floors, and general construction projects , providing builders and contractors with a dependable high-performance insulation board manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Excellent thermal insulation with R-value of 2.49m²K/W
Low thermal conductivity of 0.022 W/mK for enhanced energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier handling and installation
Suitable for roofs, walls, floors, and general construction applications
Square-edge profile for precise butt joint installation
Durable and reliable construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 67mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 23.49kg per panel
Pack Size: Single panel (2400mm x 1200mm x 67mm)
Profile: Square Edge
