🚛 Next Day Delivery (West Midlands) – FREE on orders over £500
Description

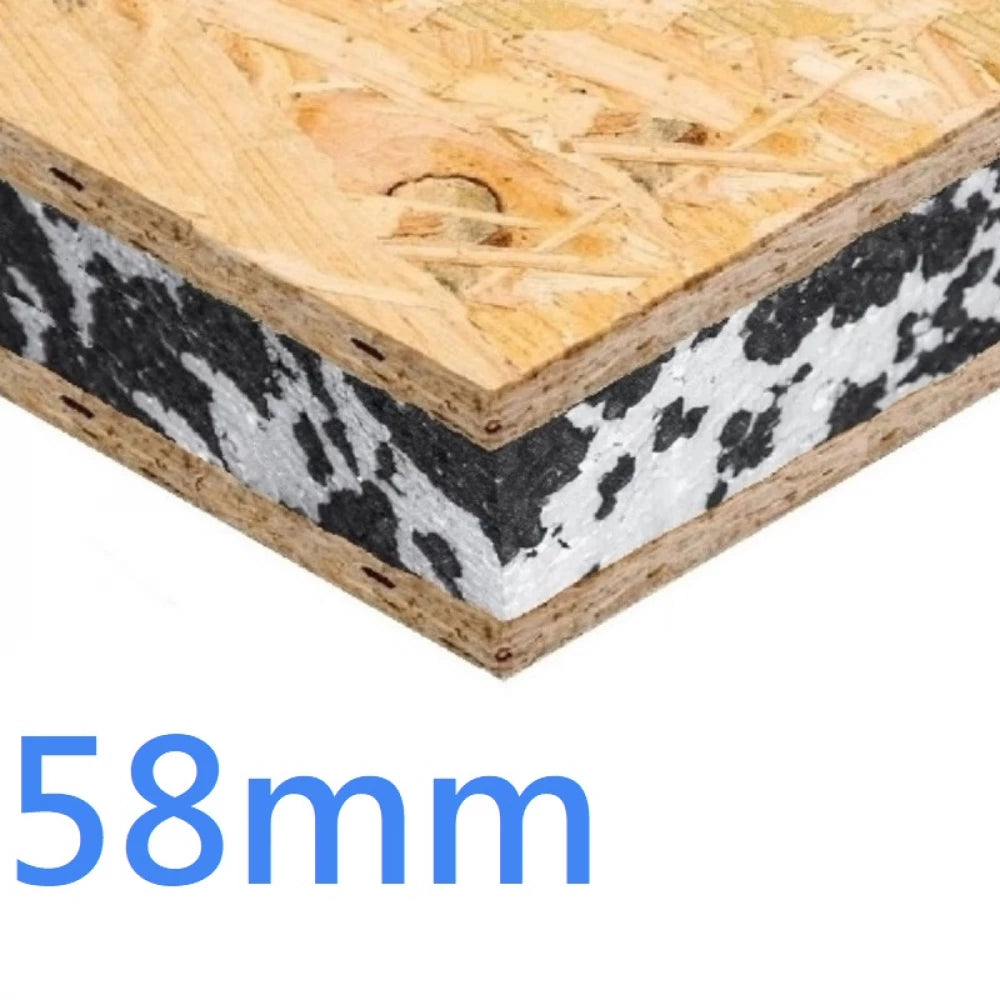

The 58mm SIPs EPS and OSB Insulated Sandwich Panel is a cost-effective, energy-efficient construction board designed to provide reliable thermal insulation, structural support, and durability for a variety of building applications. Manufactured with a closed-cell EPS (expanded polystyrene) insulation core combined with strong 9mm oriented strand board (OSB) facings , this panel offers a practical solution for modern construction projects.
With an R-value of 1.08m²K/W and thermal conductivity values of 0.037 W/mK for the EPS core and 0.13 W/mK for the OSB facings , the panel delivers effective insulation performance while maintaining structural stability. The lightweight EPS core improves handling efficiency, while the OSB facings provide a durable and robust construction surface.
Featuring a square-edge profile , the panel allows accurate installation using the butt joint technique. Suitable for roofs, walls, floors, and general construction applications , this EPS and OSB SIP panel provides a strong, energy-efficient, and economical building solution manufactured by Custom made® .
Key Features
Cost-effective EPS Structural Insulated Panel (SIP)
Manufactured with a closed-cell EPS insulation core and OSB facings
Improved thermal performance with R-value of 1.08m²K/W
EPS core thermal conductivity of 0.037 W/mK
Durable OSB facings with thermal conductivity of 0.13 W/mK
Strong EPS core with 70 kPa compressive strength
Lightweight design for easier handling and installation
Suitable for roofs, walls, floors, and general construction applications
2400mm x 1200mm square-edge SIP panel design Easy butt joint installation for accurate fitting
Strong, energy-efficient, and cost-effective construction solution
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 58mm
Core Material: Closed-cell EPS insulation
Facing Material: 9mm Oriented Strand Board (OSB)
Weight: 34.00kg per panel
Weight per m²: 11.81kg
Profile: Square Edge
Pack Size: Single panel (2400mm x 1200mm x 58mm)
