Description

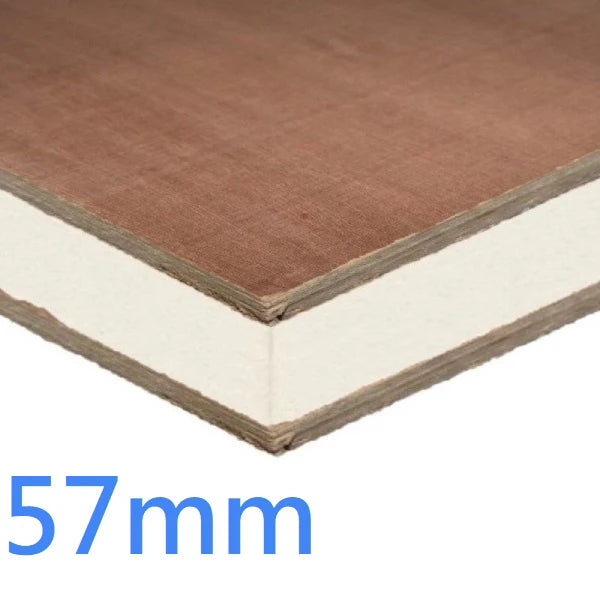

The 57mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance insulated construction board engineered to provide superior thermal efficiency, structural strength, and durability for modern building projects. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel delivers an excellent balance of insulation performance and mechanical stability.
With an impressive R-value of 2.05m²K/W and a low thermal conductivity of 0.022 W/mK , the panel helps minimise heat loss and improve energy efficiency in residential, commercial, and industrial applications. The foil-faced PIR core provides an integrated vapour control layer , helping reduce moisture transmission and support long-term building protection.
The square-edge profile enables straightforward installation using the butt joint technique, while the lightweight construction allows easier handling and fitting on site. Suitable for roofs, walls, floors, and general construction applications , this 57mm SIP panel is a reliable choice for projects requiring high insulation performance and dependable structural support.
Key Features
High-performance PIR insulated structural sandwich panel
Combines rigid PIR insulation core with 6mm WBP plywood facings
Excellent thermal insulation with R-value of 2.05m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy savings
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight and easy to handle during installation
Suitable for roofs, walls, floors, and general construction projects
Square-edge design for accurate butt joint installation
Durable high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 57mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 21.05kg per panel
Pack Size: Single panel (2400mm x 1200mm x 57mm)
Profile: Square Edge
