Description

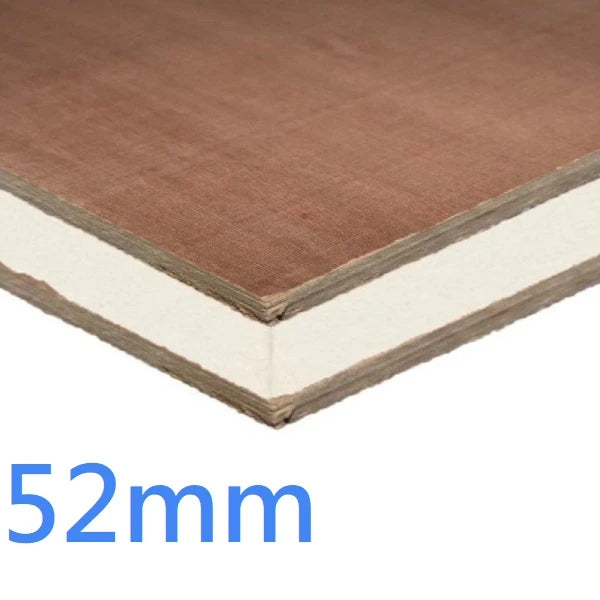

The 52mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board designed to deliver excellent thermal insulation, structural strength, and reliable long-term performance. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel provides a strong and energy-efficient solution for modern building applications.
Offering an impressive R-value of 1.82m²K/W and a low thermal conductivity of 0.022 W/mK , the panel helps minimise heat loss and improve the overall energy efficiency of buildings. The foil-faced PIR core acts as an integrated vapour control layer , helping to reduce moisture movement and enhance durability.
Designed with a square-edge profile , the 52mm SIP panel allows easy installation using the butt joint technique. Its lightweight yet robust construction makes it suitable for use in roofs, walls, floors, and general construction projects , providing builders and contractors with a dependable insulated structural board solution.
Key Features
High-performance PIR insulated structural sandwich panel
Features a rigid PIR insulation core with 6mm WBP plywood facings
Superior thermal insulation with R-value of 1.82m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight design for easy handling, cutting, and installation
Suitable for roofs, walls, floors, and general construction applications
Square-edge profile for accurate butt joint fitting
Durable high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 52mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 20.52kg per panel
Pack Size: Single panel (2400mm x 1200mm x 52mm)
Profile: Square Edge
