Description

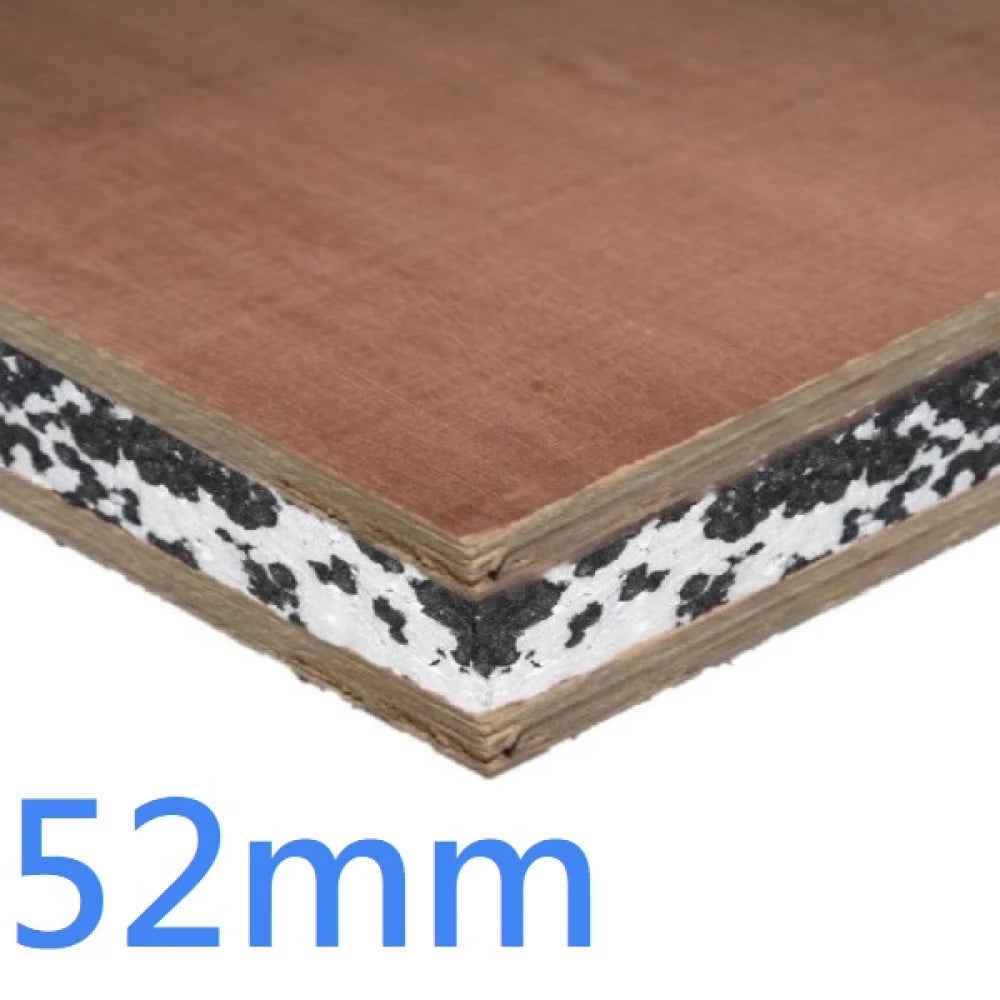

The 52mm SIPs Structural Insulated Sandwich Panel with EPS and Plywood is a cost-effective and energy-efficient construction board designed to provide reliable thermal insulation, structural support, and durability for a wide range of building applications. Manufactured with a closed-cell EPS (expanded polystyrene) insulation core combined with strong 6mm WBP plywood facings , this panel offers a practical solution for modern construction projects.
With an R-value of 1.08m²K/W and thermal conductivity values of 0.037 W/mK for the EPS core and 0.13 W/mK for the plywood facings , the panel delivers effective insulation performance while maintaining excellent structural stability. The lightweight EPS core improves handling and installation efficiency, while the plywood facings provide a durable and robust construction surface.
Featuring a square-edge profile , the panel allows accurate installation using the butt joint technique. Suitable for roofs, walls, floors, and general construction applications , this EPS and plywood SIP panel provides a strong, energy-efficient, and economical building solution manufactured for professional construction needs.
Key Features
Cost-effective EPS Structural Insulated Panel (SIP)
Manufactured with a closed-cell EPS insulation core and plywood facings
Excellent thermal insulation with R-value of 1.08m²K/W
EPS core thermal conductivity of 0.037 W/mK
Durable plywood facings with thermal conductivity of 0.13 W/mK
Strong EPS core with 70 kPa compressive strength
Lightweight construction board for easier handling and installation
Suitable for roofs, walls, floors, and general construction applications
2400mm x 1200mm square-edge SIP panel design Easy butt joint installation for accurate fitting
Strong, energy-efficient, and cost-effective construction solution
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 52mm
Core Material: Closed-cell EPS insulation
Facing Material: 6mm WBP Plywood
Weight: 32.50kg per panel
Weight per m²: 11.285kg
Profile: Square Edge
Pack Size: Single panel (2400mm x 1200mm x 52mm)
