Description

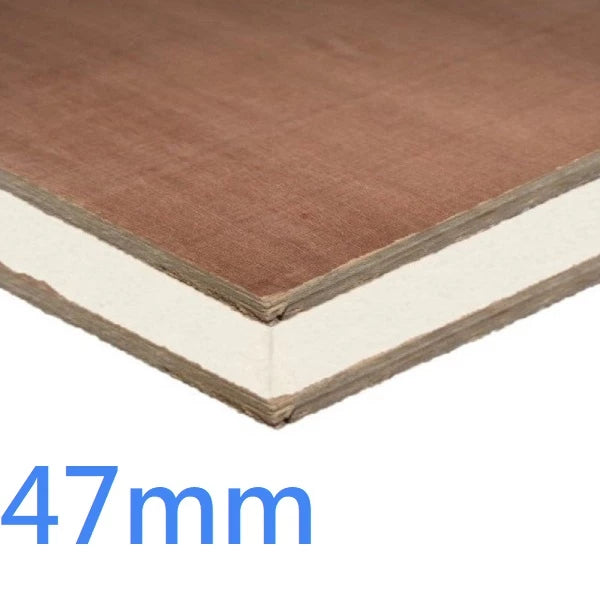

The 47mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board designed to provide enhanced thermal insulation, structural stability, and long-lasting durability. Featuring a rigid polyisocyanurate (PIR) insulation core bonded with 6mm WBP plywood facings , this panel offers an efficient solution for modern energy-conscious construction projects.
With an excellent R-value of 1.59m²K/W and a low thermal conductivity of 0.022 W/mK , the panel delivers outstanding insulation performance, helping reduce heat loss and improve building energy efficiency. The foil-faced PIR core also provides an integrated vapour control layer , helping to limit moisture transmission and protect the building structure.
The square-edge profile allows simple and accurate installation using the butt joint technique, while the lightweight yet strong design makes it suitable for a wide range of applications including roofs, walls, floors, and general construction. Manufactured by Custom made® , this SIP panel provides a reliable combination of insulation, strength, and ease of installation.
Key Features
High-performance PIR insulated structural sandwich panel
Combines a rigid PIR insulation core with 6mm WBP plywood facings
Excellent thermal performance with R-value of 1.59m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy efficiency
Integrated vapour control layer with foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier handling and installation
Suitable for roofs, walls, floors, and general construction applications
Square-edge profile for easy butt joint installation
Durable and high-performance construction board by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 47mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 19.99kg per panel
Pack Size: Single panel (2400mm x 1200mm x 47mm)
Profile: Square Edge
