Description

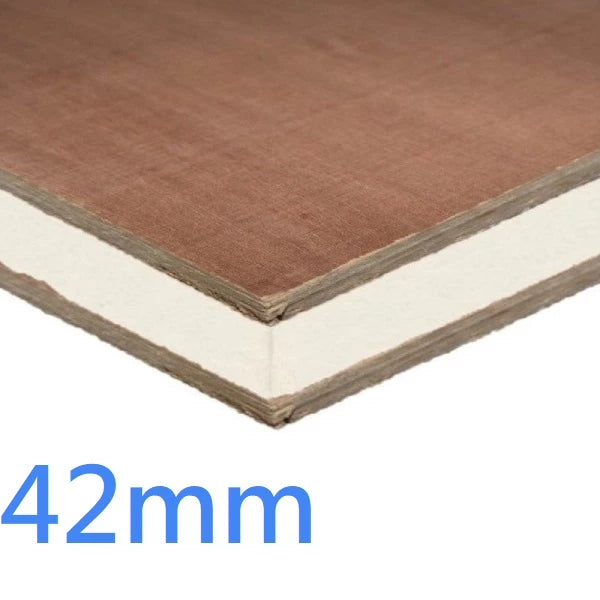

The 42mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance insulated construction board designed to deliver superior thermal efficiency, structural strength, and durability. Combining a rigid polyisocyanurate (PIR) insulation core with 6mm WBP plywood facings , this panel provides an effective solution for energy-efficient building projects including roofs, walls, floors, and general construction applications.
With an excellent R-value of 1.36m²K/W and a low thermal conductivity of 0.022 W/mK , the panel helps reduce heat transfer and improve overall building performance. The foil-faced PIR core provides an integrated vapour control layer , helping to minimise moisture movement and maintain a comfortable internal environment.
Designed with a square-edge profile , the 42mm SIP panel offers straightforward installation using the butt joint technique. Its strong yet lightweight construction makes it a practical choice for builders, contractors, and construction professionals requiring reliable insulation with structural performance.
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR core and 6mm WBP plywood facings
Superior thermal insulation with R-value of 1.36m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy efficiency
Integrated vapour control layer from foil-faced PIR insulation
Strong PIR core with 150 kPa compressive strength
Lightweight design for easier transportation and installation
Suitable for roofs, walls, floors, and general construction
Square-edge profile for precise butt joint installation
Durable construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 42mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 19.36kg per panel
Pack Size: Single panel (2400mm x 1200mm x 42mm)
Profile: Square Edge
