Description

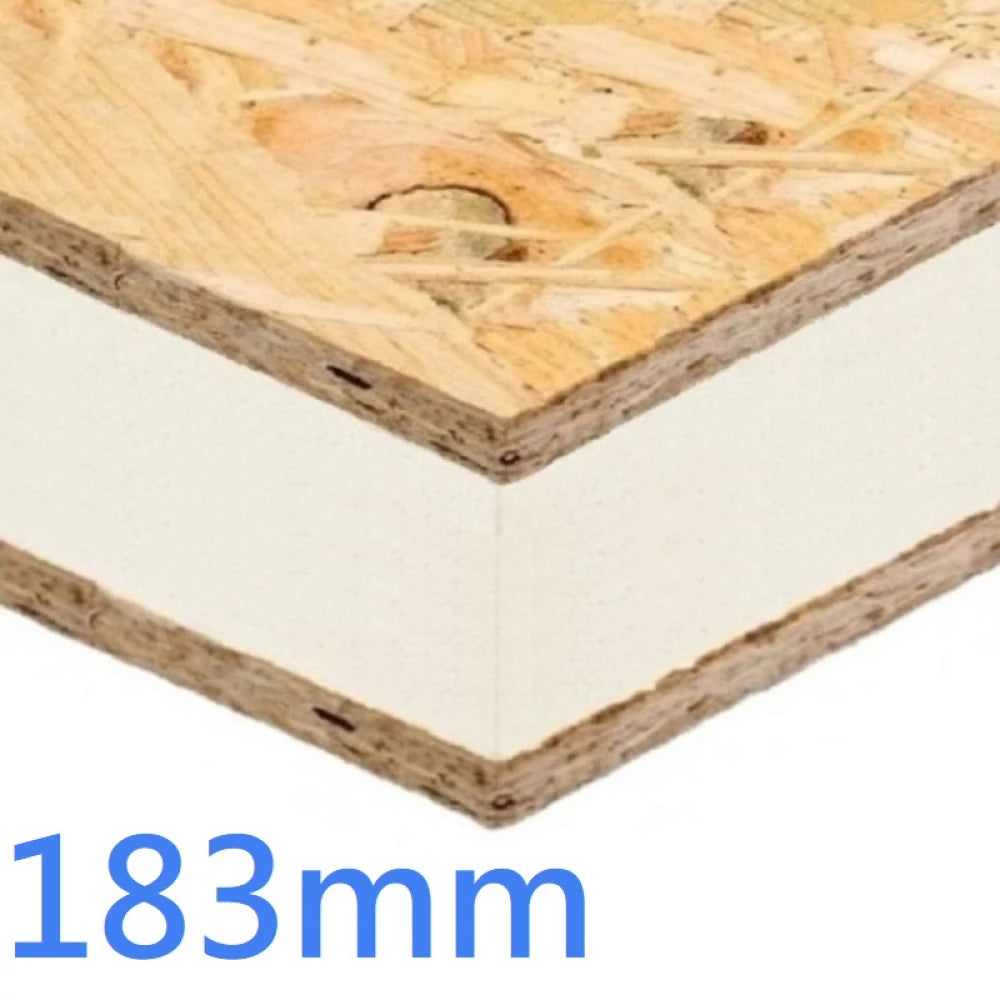

The 183mm PIR and OSB SIP Structural Insulated Sandwich Panel is a high-performance construction board designed to provide exceptional thermal insulation, structural strength, and long-term durability for demanding building applications. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with two 9mm oriented strand board (OSB) facings , this panel delivers an advanced solution for energy-efficient construction projects.
With an excellent R-value of 7.50m²K/W and thermal conductivity values of 0.022 W/mK for the PIR foam core and 0.13 W/mK for the OSB facings , the panel provides outstanding insulation performance while maintaining excellent structural stability. The foil-faced PIR core provides an integrated vapour control layer , helping minimise moisture movement and protect the building structure.
Featuring a square-edge profile , the panel allows accurate installation using the butt joint technique. Suitable for roofs, walls, floors, and general construction applications , the 183mm SIP panel provides builders and contractors with a reliable high-performance OSB structural insulated panel manufactured by Custom made® .
Key Features
High-performance OSB Structural Insulated Panel (SIP)
Manufactured with a rigid PIR insulation core and dual 9mm OSB facings
Excellent thermal insulation with R-value of 7.50m²K/W
Low PIR thermal conductivity of 0.022 W/mK for improved energy efficiency
Strong OSB facings with thermal conductivity of 0.13 W/mK
Strong PIR core with 150 kPa compressive strength
Durable OSB facing with approximately 650kg/m³ density
Integrated vapour control layer through foil-faced PIR core
Suitable for roofs, walls, floors, and general construction applications
2400mm x 1200mm (8x4) square-edge SIP panel design Easy installation using the butt joint technique
High-performance OSB SIP panel manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 183mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 2 x 9mm Oriented Strand Board (OSB)
Weight: 47.50kg per panel
Pack Size: Single panel (2400mm x 1200mm x 183mm)
Profile: Square Edge
