Description

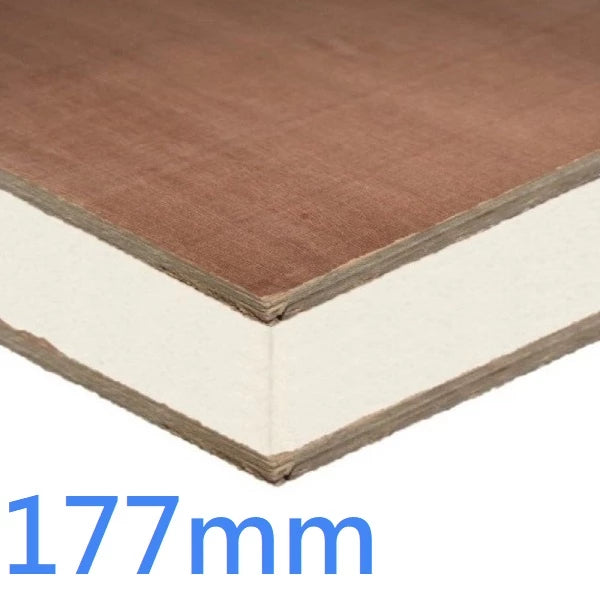

The 177mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board engineered for projects requiring superior thermal insulation, structural stability, and long-term durability. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel provides an advanced solution for energy-efficient construction with excellent insulation performance.
With an outstanding R-value of 7.50m²K/W and a low thermal conductivity of 0.022 W/mK , the panel delivers exceptional heat retention and helps reduce energy consumption in buildings. The foil-faced PIR core provides an integrated vapour control layer , helping minimise moisture transfer and improve the long-term protection of the structure.
Featuring a square-edge profile , the panel supports accurate installation using the butt joint technique. Its robust yet lightweight construction makes it suitable for roofs, walls, floors, and general construction applications , providing builders and contractors with a reliable high-performance insulated structural panel manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Exceptional thermal insulation with R-value of 7.50m²K/W
Low thermal conductivity of 0.022 W/mK for maximum energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight design for easier handling and installation
Suitable for roofs, walls, floors, and general construction applications
Square-edge profile for precise butt joint installation
Durable and high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 177mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 47.50kg per panel
Pack Size: Single panel (2400mm x 1200mm x 177mm)
Profile: Square Edge
