Description

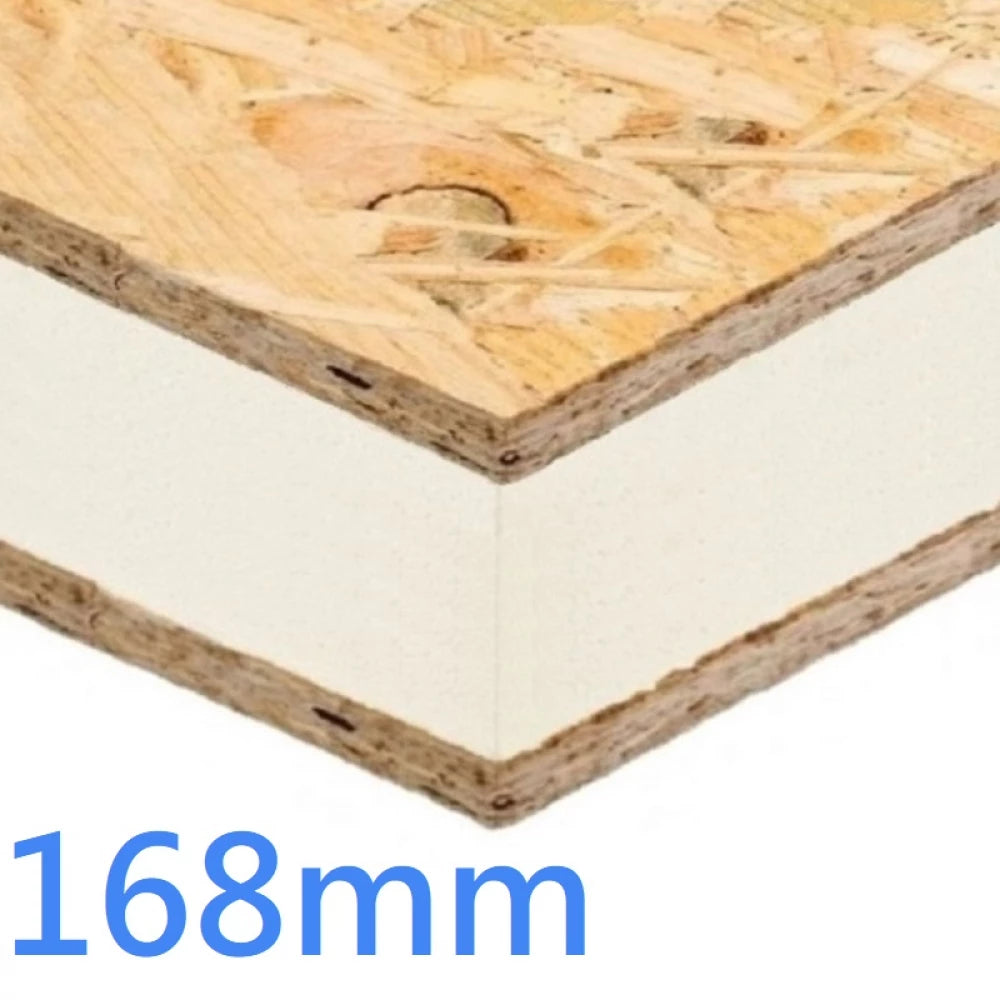

The 168mm SIP Insulated Sandwich Panel with PIR and OSB is a high-performance construction board designed to provide exceptional thermal insulation, structural strength, and long-term durability for modern building applications. Manufactured with a rigid polyisocyanurate (PIR) foam core combined with two 9mm OSB facings , this panel delivers a robust and energy-efficient solution for advanced construction projects.
With thermal conductivity values of 0.022 W/mK for the PIR foam core and 0.13 W/mK for the OSB facings , the panel provides excellent insulation performance while maintaining strong structural integrity. The foil-faced PIR core creates an integrated vapour control layer , helping minimise moisture movement and improve the durability of the building structure.
Featuring a square-edge profile , the panel allows accurate and efficient installation using the butt joint technique. Suitable for roofs, walls, floors, and general construction applications , the 168mm SIP panel provides builders and contractors with a dependable high-performance OSB structural insulated panel solution for energy-efficient buildings.
Key Features
High-performance OSB Structural Insulated Panel (SIP)
Manufactured with a rigid PIR insulation core and dual 9mm OSB facings
Excellent thermal insulation with PIR conductivity of 0.022 W/mK
Strong OSB facings with thermal conductivity of 0.13 W/mK
Enhanced structural stability with OSB layers on both sides
Integrated vapour control layer through foil-faced PIR core
Suitable for roofs, walls, floors, and general construction applications
2400mm x 1200mm (8x4) square-edge SIP panel design Easy installation using the butt joint technique
High-performance construction board for energy-efficient projects
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 168mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 2 x 9mm Oriented Strand Board (OSB)
Profile: Square Edge
Pack Size: Single panel (2400mm x 1200mm x 168mm)
