Description

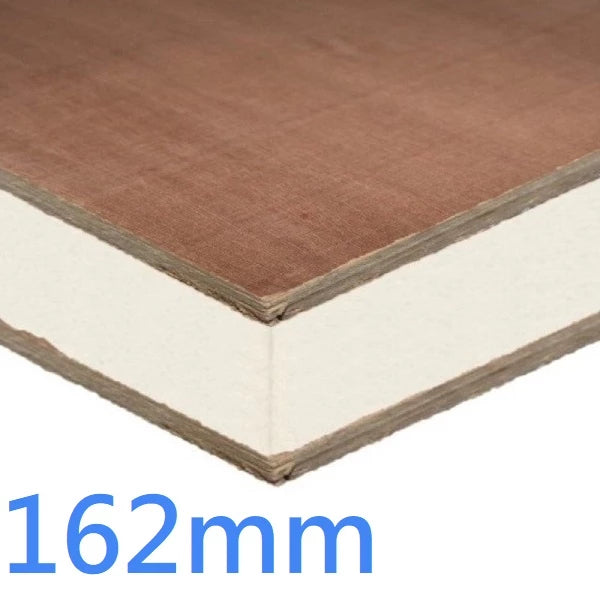

The 162mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is an advanced high-performance construction board designed to deliver exceptional thermal insulation, structural strength, and long-term durability. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel provides an efficient and reliable solution for high-performance building applications.
With an impressive R-value of 6.82m²K/W and a low thermal conductivity of 0.022 W/mK , the panel offers outstanding insulation performance, helping significantly reduce heat loss and improve overall building energy efficiency. The foil-faced PIR core provides an integrated vapour control layer , helping minimise moisture movement and maintain long-term structural performance.
Designed with a square-edge profile , the panel allows easy and accurate installation using the butt joint technique. Its strong yet lightweight construction makes it suitable for roofs, walls, floors, and general construction applications , providing builders and contractors with a dependable high-performance insulated structural board manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Exceptional thermal insulation with R-value of 6.82m²K/W
Low thermal conductivity of 0.022 W/mK for maximum energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier handling and installation
Suitable for roofs, walls, floors, and general construction applications
Square-edge profile for precise butt joint installation
Durable and high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 162mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 43.20kg per panel
Pack Size: Single panel (2400mm x 1200mm x 162mm)
Profile: Square Edge
