Description

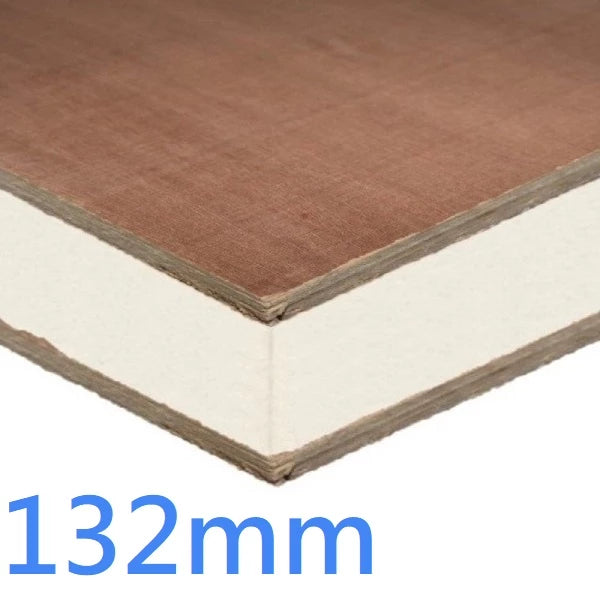

The 132mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board designed to provide exceptional thermal insulation, structural strength, and long-lasting durability for advanced building applications. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel delivers an efficient and reliable solution for energy-efficient construction.
With an excellent R-value of 5.45m²K/W and low thermal conductivity of 0.022 W/mK , the panel provides outstanding insulation performance, helping to minimise heat loss and improve overall building energy efficiency. The foil-faced PIR core provides an integrated vapour control layer , helping reduce moisture transfer and protect the building structure.
The square-edge profile allows accurate and straightforward installation using the butt joint technique. Its robust yet lightweight construction makes it suitable for roofs, walls, floors, and general construction applications , offering builders and contractors a high-performance insulated structural board manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Superior thermal insulation with R-value of 5.45m²K/W
Low thermal conductivity of 0.022 W/mK for enhanced energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier handling and installation
Suitable for roofs, walls, floors, and general construction applications
Square-edge profile for precise butt joint installation
Durable and high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 132mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 37.45kg per panel
Pack Size: Single panel (2400mm x 1200mm x 132mm)
Profile: Square Edge
