Description

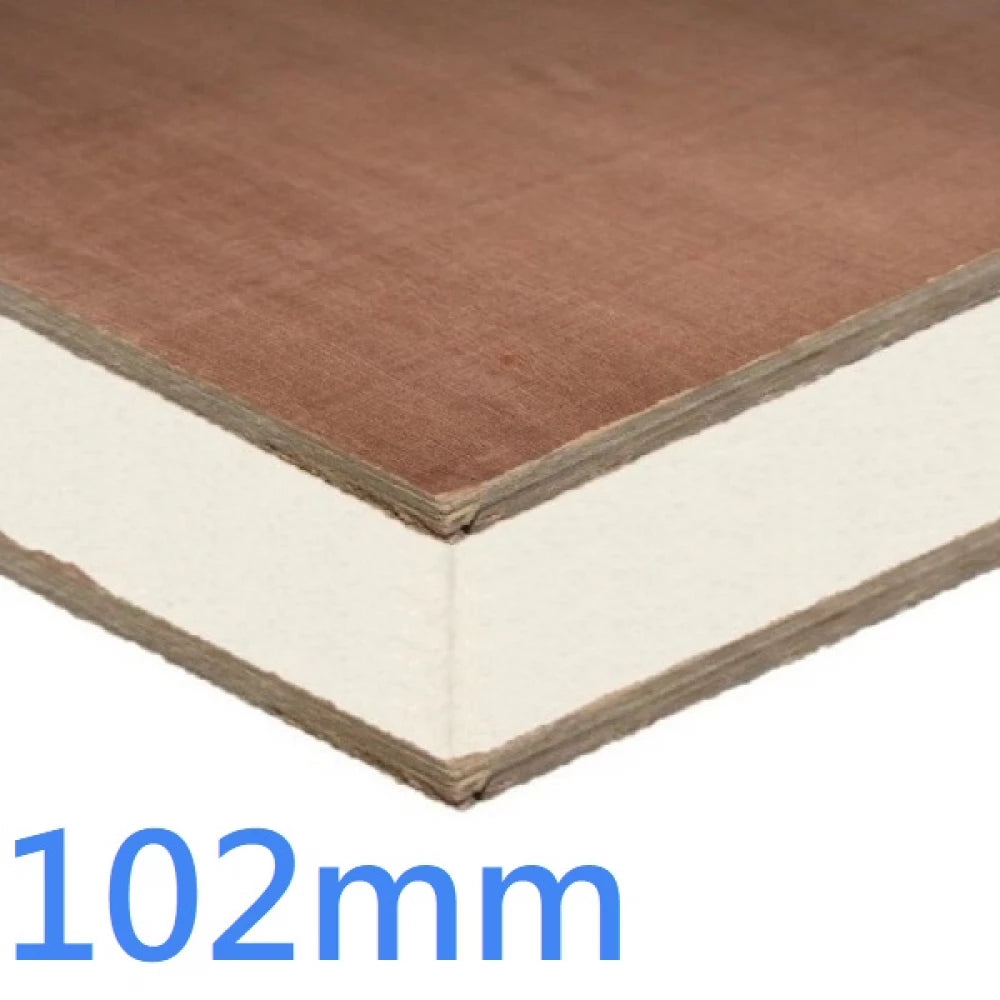

The 102mm Structural Insulated Sandwich Panel (SIP) with PIR and Plywood is a high-performance construction board designed to deliver exceptional thermal insulation, structural stability, and long-term durability for modern building projects. Manufactured with a rigid polyisocyanurate (PIR) insulation core combined with 6mm WBP plywood facings , this panel provides a highly efficient solution for energy-saving construction applications.
With an excellent R-value of 4.09m²K/W and a low thermal conductivity of 0.022 W/mK , the panel offers superior insulation performance, helping to minimise heat loss and improve overall building energy efficiency. The foil-faced PIR core provides an integrated vapour control layer , helping reduce moisture movement and protect the building structure over time.
Featuring a square-edge profile , the panel allows straightforward installation using the butt joint technique. Its strong yet lightweight design makes it suitable for roofs, walls, floors, and general construction applications , providing builders and contractors with a reliable insulated structural panel solution manufactured by Custom made® .
Key Features
High-performance PIR insulated structural sandwich panel
Manufactured with a rigid PIR insulation core and 6mm WBP plywood facings
Superior thermal insulation with R-value of 4.09m²K/W
Low thermal conductivity of 0.022 W/mK for improved energy efficiency
Integrated vapour control layer through foil-faced PIR core
Strong PIR core with 150 kPa compressive strength
Lightweight construction for easier handling and installation
Suitable for roofs, walls, floors, and general construction projects
Square-edge profile for precise butt joint fitting
Durable and high-performance construction board manufactured by Custom made®
Dimensions & Pack Size
Panel Size: 2400mm x 1200mm
Overall Thickness: 102mm
Core Material: Polyisocyanurate (PIR) insulation
Facing Material: 6mm WBP plywood
Weight: 31.19kg per panel
Pack Size: Single panel (2400mm x 1200mm x 102mm)
Profile: Square Edge
